Flanges are forged and machined, as per ASME / ANSI B 16.5 from the materials ASME / ASTM – A105/A105 N and low temperature flanges from ASTM-ASME- SA350 LF2 (V Notch Charpy Test) as per standard. Flanges are conforming to NACE MR-01-75 latest edition.
The Flange range includes the following:
| Pressure Class | Size Range | Type |
| 150 Lbs | ½” to 16” NPS | SO, BLD, WN, SW, LJ, THD, XH, XXH, SCH 80, SCH 160 |
| 300 Lbs | ½” to 12” NPS | SO, BLD, WN, SW, LJ, THD, XH, XXH, SCH 80, SCH 160 |
| 600 Lbs | ½” to 10” NPS | SO, BLD, WN, SW, LJ, THD, XH, XXH, SCH 80, SCH 160 |
| 150 Lbs | 1”x ½” to 12” NPS | Reducing |
| Material | Carbon Steel ASTM/ASME A/SA 105, A/SA 105N and SA 350 LF2 |
| Dimension Standard | ASME/ANSI B 16.5-2009 |
| Certification | ISO 9001: 2015 |
| Finish | Black Painted, Not Painted (Self Color), Galvanised |

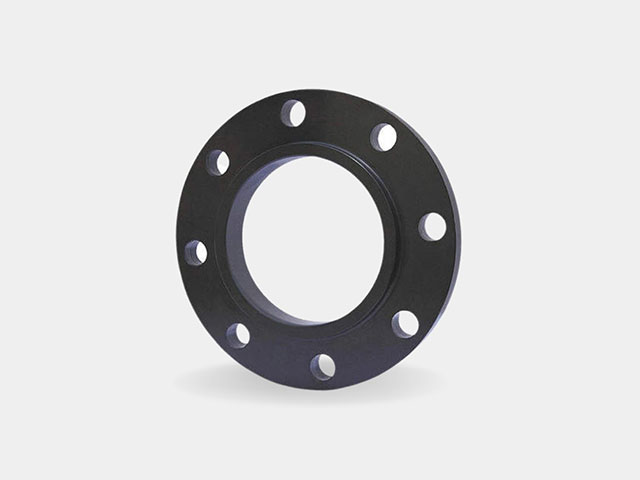

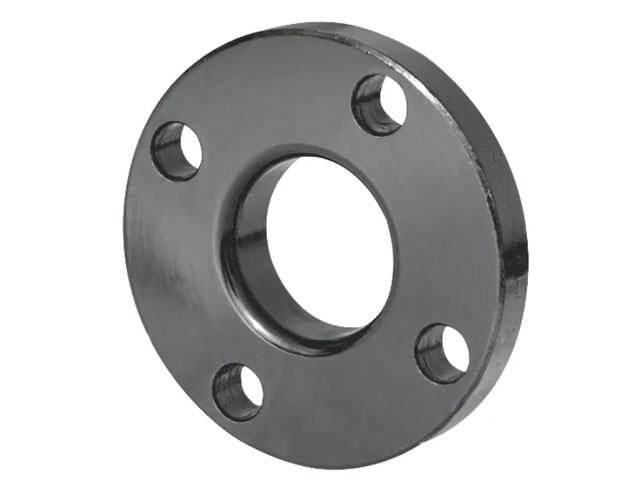

Lap Joint

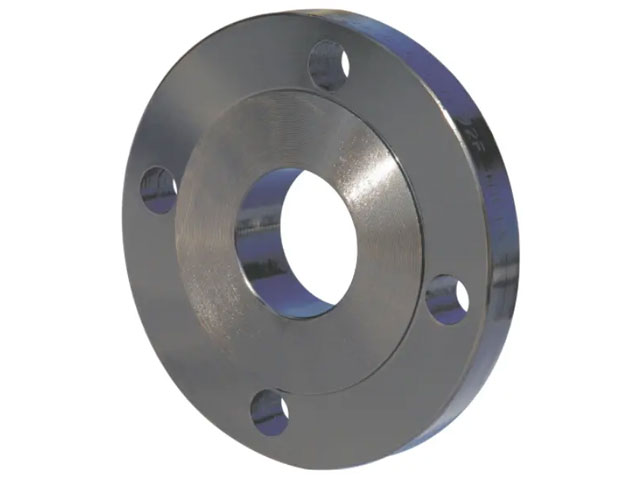

Reducing Flange

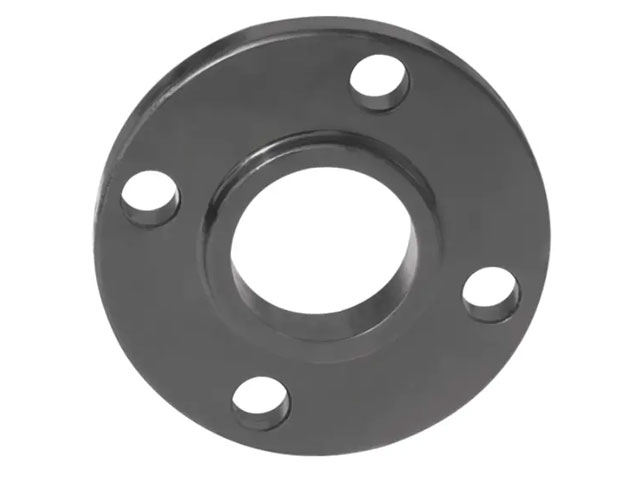

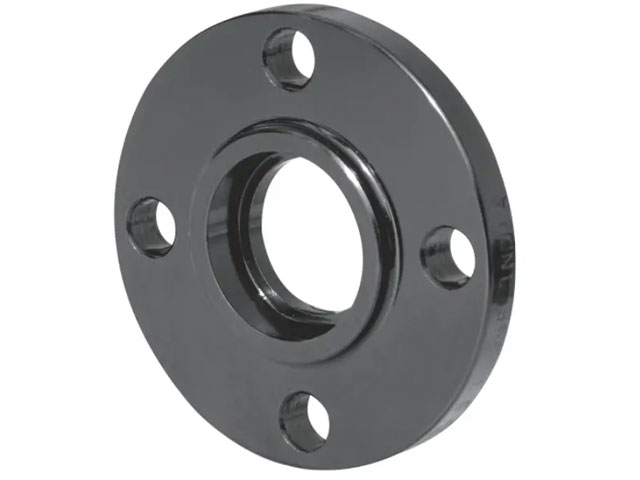

Socket Weld

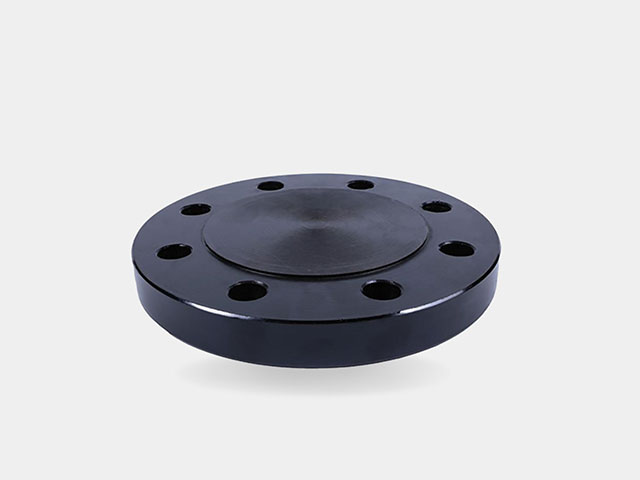

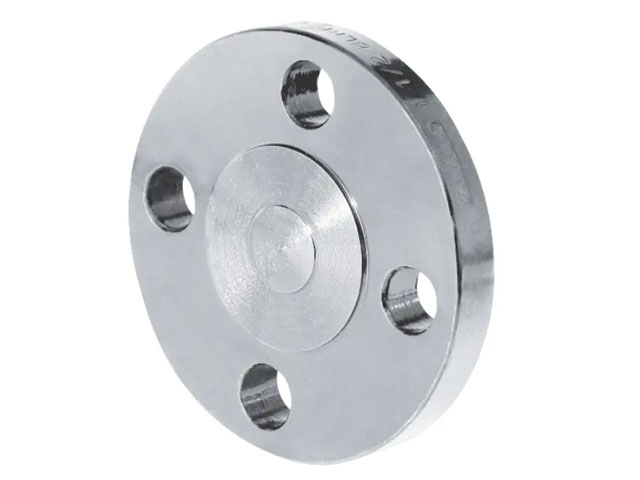

Blind

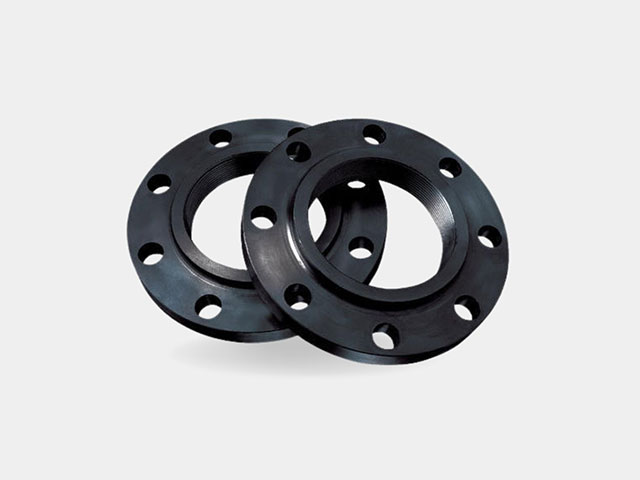

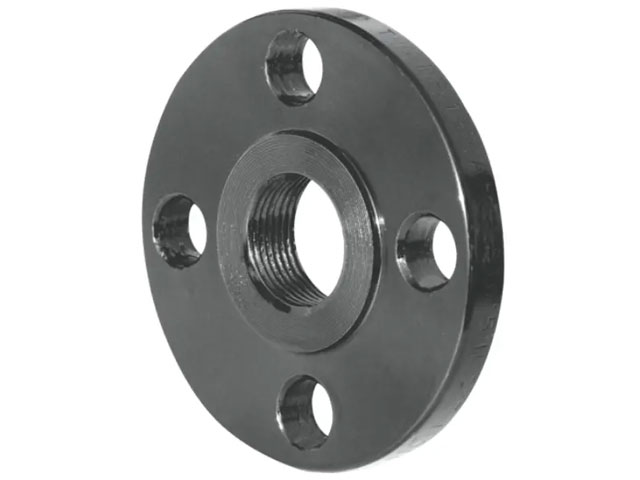

Threaded

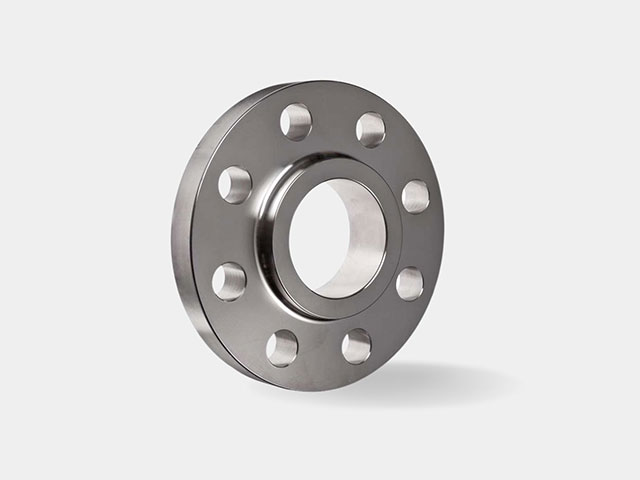

Slip on

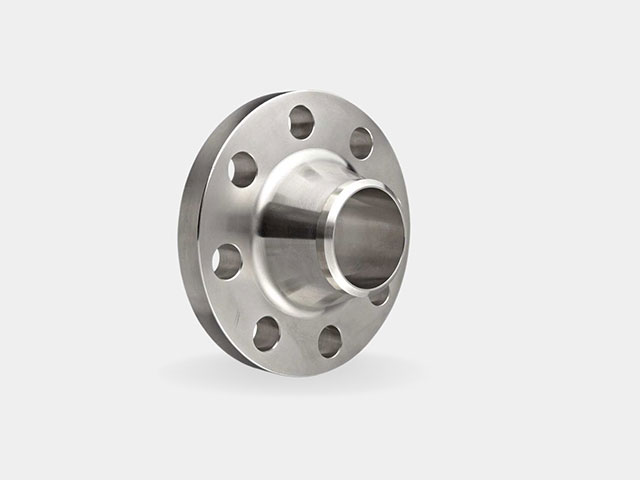

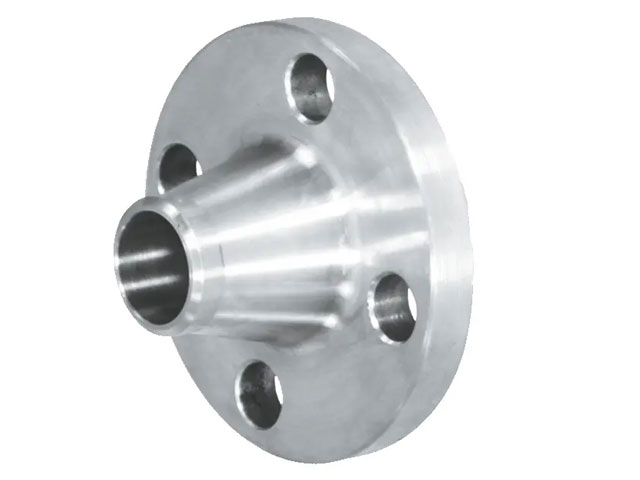

Weld Neck
